Furnace Tube Heaters
Product Overview
Casso-Solar Technologies Quartz Furnace Heaters can be used with a variety of control types including any existing furnace controls.
Simple on/off circuits allow full heater power are utilized.
If adjustment of power output is required for a heater or zone of heaters, phase angle fired SCR power or SSR’s controllers can be used.
Casso-Solar Technologies Tubular Quartz Furnace Heaters have the ability to direct 40-50% more energy toward your product as compared to conventional ceramic tube heaters.

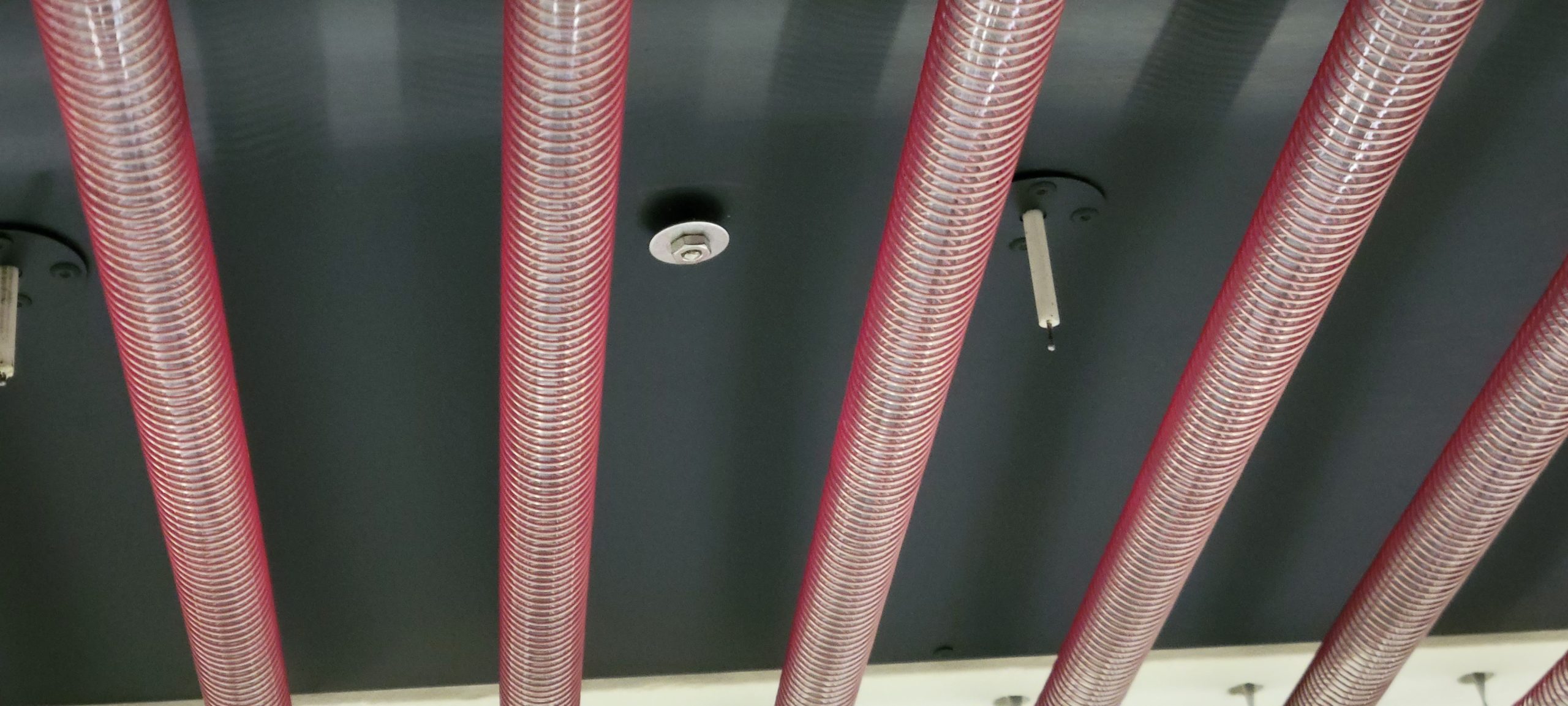

The Casso-Solar furnace tube utilizes a quartz tube core, allowing energy from the back of the coil to radiate through the quartz to the product.
Request a Quote
Contact our Sales Team to discuss our extensive offerings and find out how we can deliver equipment custom-designed for your needs.
Features
- Horizontal or vertical operation
- Custom wattage and voltages
- Design Flexibility
- Ease of control
- Higher Power Outputs
- Thermocouple
- Extended Life
Specifications
- Watt Densities: Up to 200 watts per lineal inch (80 watts per centimeter)
- Voltages: 120V, 240V 277V, 380V, 415V, 480V, 575V, 600V & Non-standard voltages
- Sizes: 6” through 120” in length and longer
- Wavelength Emission: 2.5 – 6.0 microns
- Temperature Range: Up to 1800°F (982°C)
- Thermocouple: Consult our sales staff for recommendations on thermocouple and control configurations
- Tube Spacing: Heaters can be mounted as close as 1 1/4” centers
Industries and Applications
- Glass Bending (Ballistic, Architectural, Automotive, & Aerospace)
- Glass Casting & Slumping
- Ceramic Ink Firing
- Chemical Vapor Deposition Furnaces
Available Options/Customizations
- Customized Electrical Terminals to Fit Existing Applications – Straight or 90 degree
- Extended Cold Ends can be provided as required for terminal and mounting arrangements
- Unequal length cold ends
